The Allied ABLE is the gravel bike for riders who refuse to compromise on speed, control, or versatility. This bike combines race-focused geometry with massive tire clearance – built to handle everything from fast gravel roads to technical trails and long endurance rides.

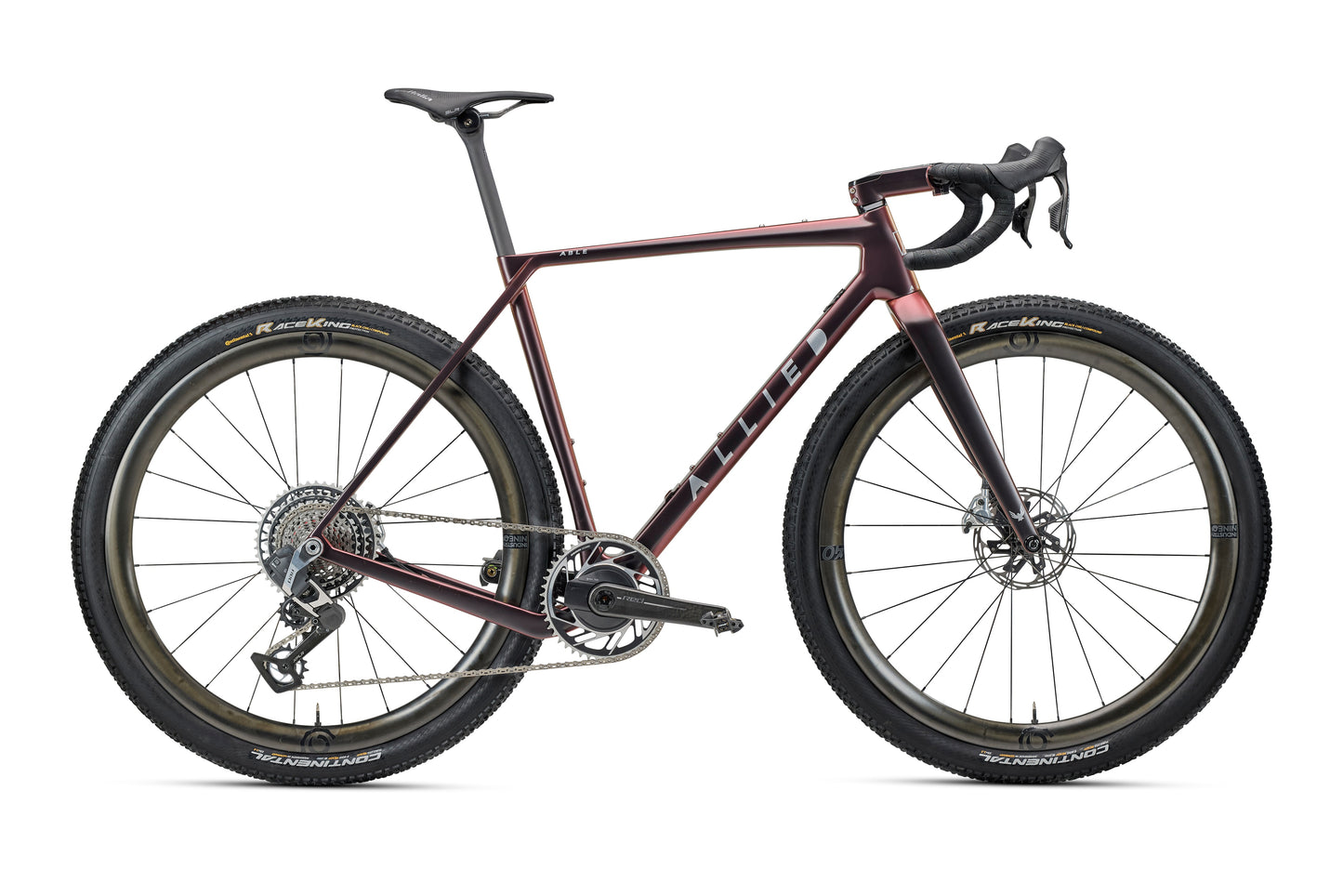

ABLE is lightweight and visually lean, with complete builds as low as 16.25 lbs (RED XPLR with Industry Nine SOLIX wheels and Continental Race King 2.2” tires). Its low weight is due in no small part to the feathery-light SP02 seat post, which features user-friendly, two-way independent adjustability for tilt and fore/aft positioning. Ease-of-use extends to the new internal frame storage. The magnetic hatch is located lower to the bottom bracket interface, not directly under the bottle mounts, which we know endures utter carnage during gravel racing. Allied did this to save weight and add strength to the door, removing any hinge mechanisms that can fail under the load of a heavy bottle.
ABLE is Direct Mount/UDH compatible and fits suspension forks (up to 40mm—although we recommend running 30mm), giving you the shifting stability of the latest wireless setups and the extra travel to take on gravel’s biggest challenges.
KEY FEATURES
MAXIMUM CLEARANCE: 700x57mm Wide
STEM: Allied ST03 (incudes headset)
SEATPOST: Allied SP02
BOTTOM BRACKET: BSA
BOTTLE MOUNTS: Downtube, Seat Tube and Top Tube bag
CHAINSTAY: 435mm
DRIVETRAIN: Built for 1x Wireless Drivetrains

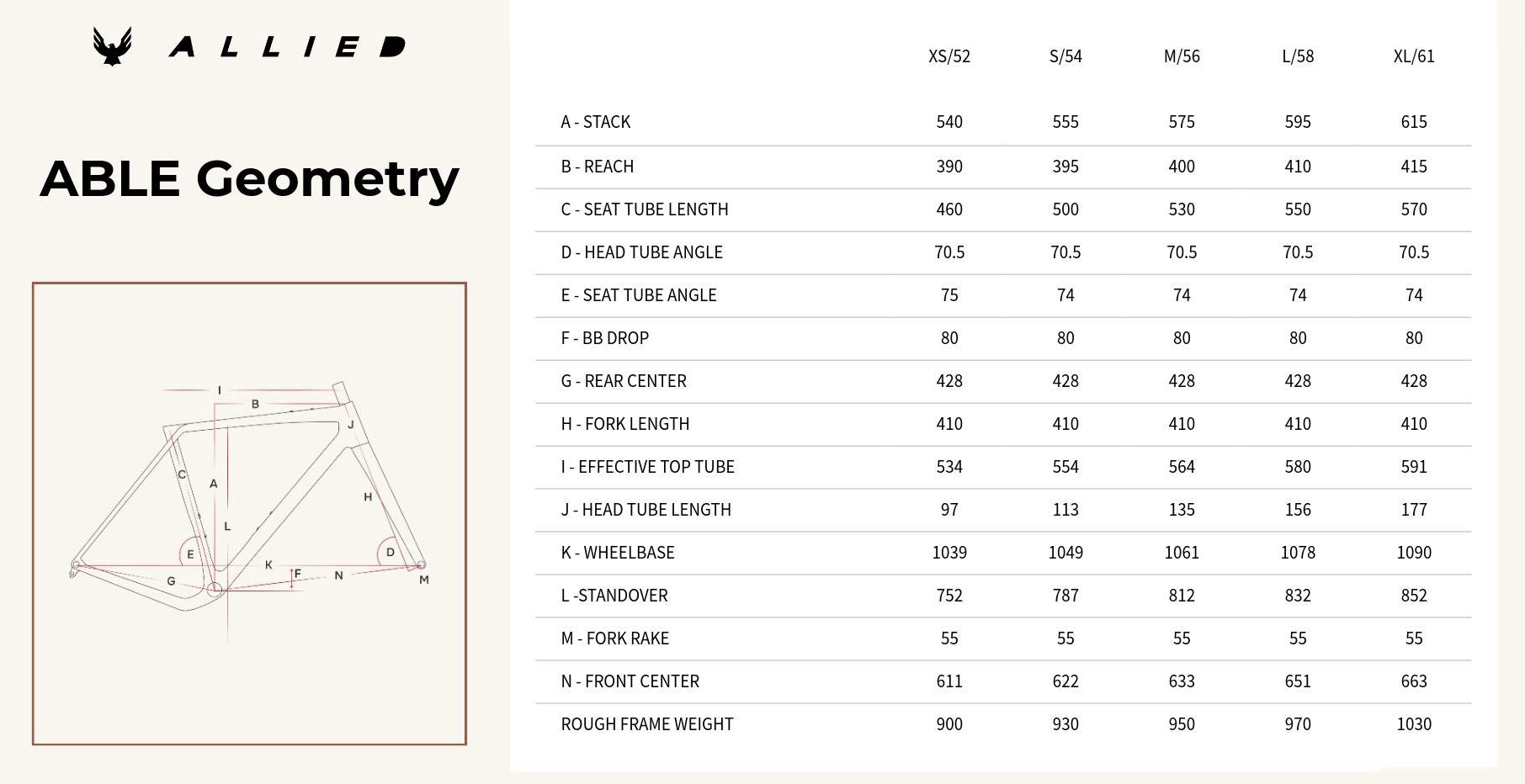

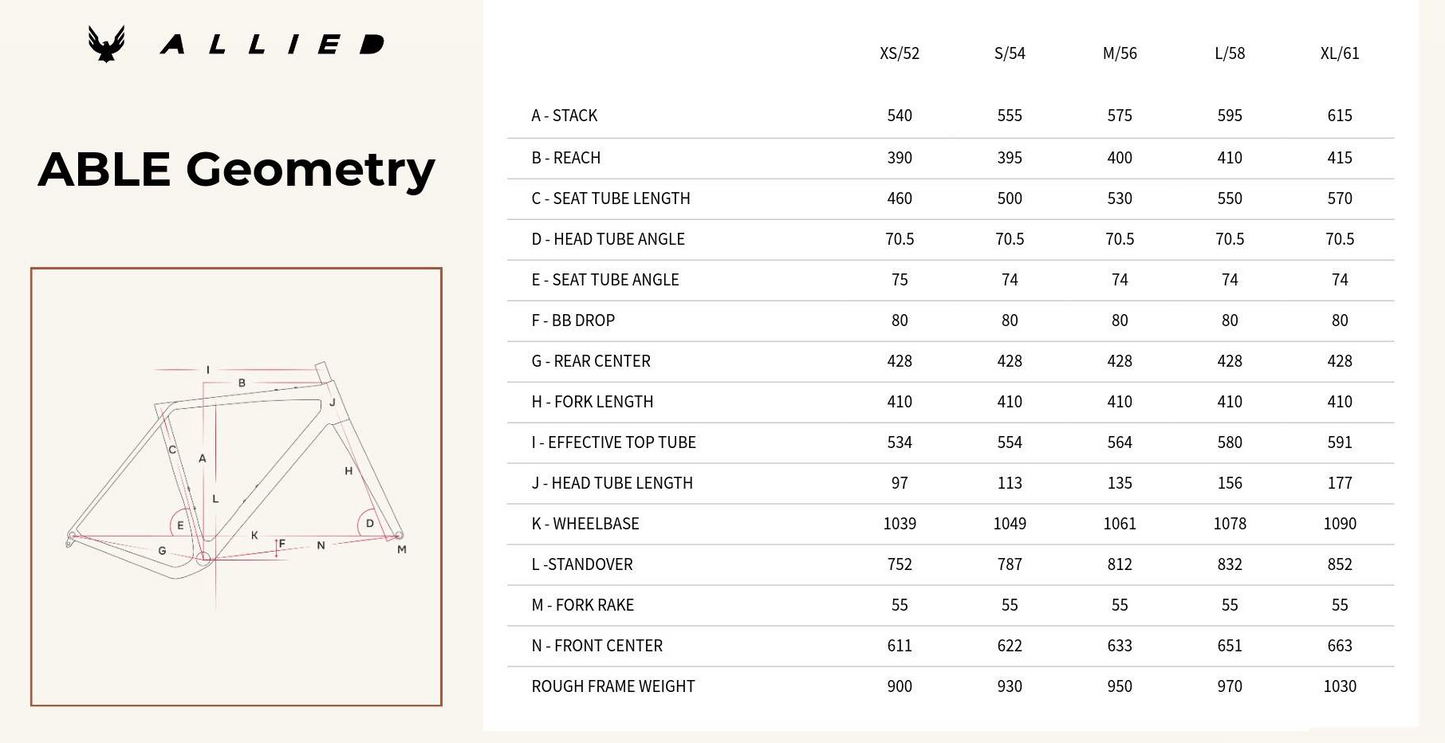

GEOMETRY: Gravel race geometry. Big tires, single track capable, but designed for speed and pack racing.
STORAGE: Lightweight and easy to access in-frame storage, including stow bag.
- Custom paint options available. Please contact us for pricing and lead times.

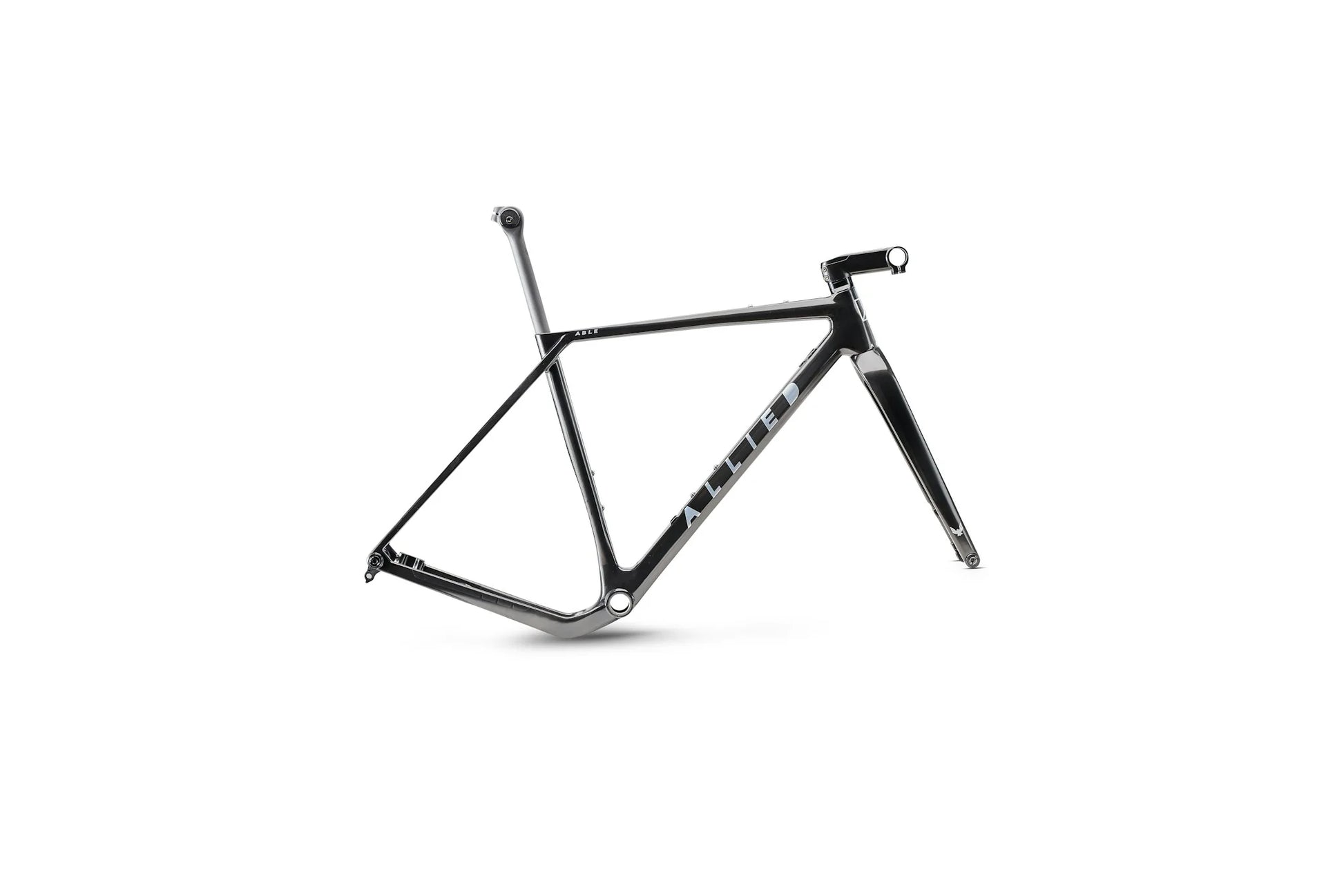

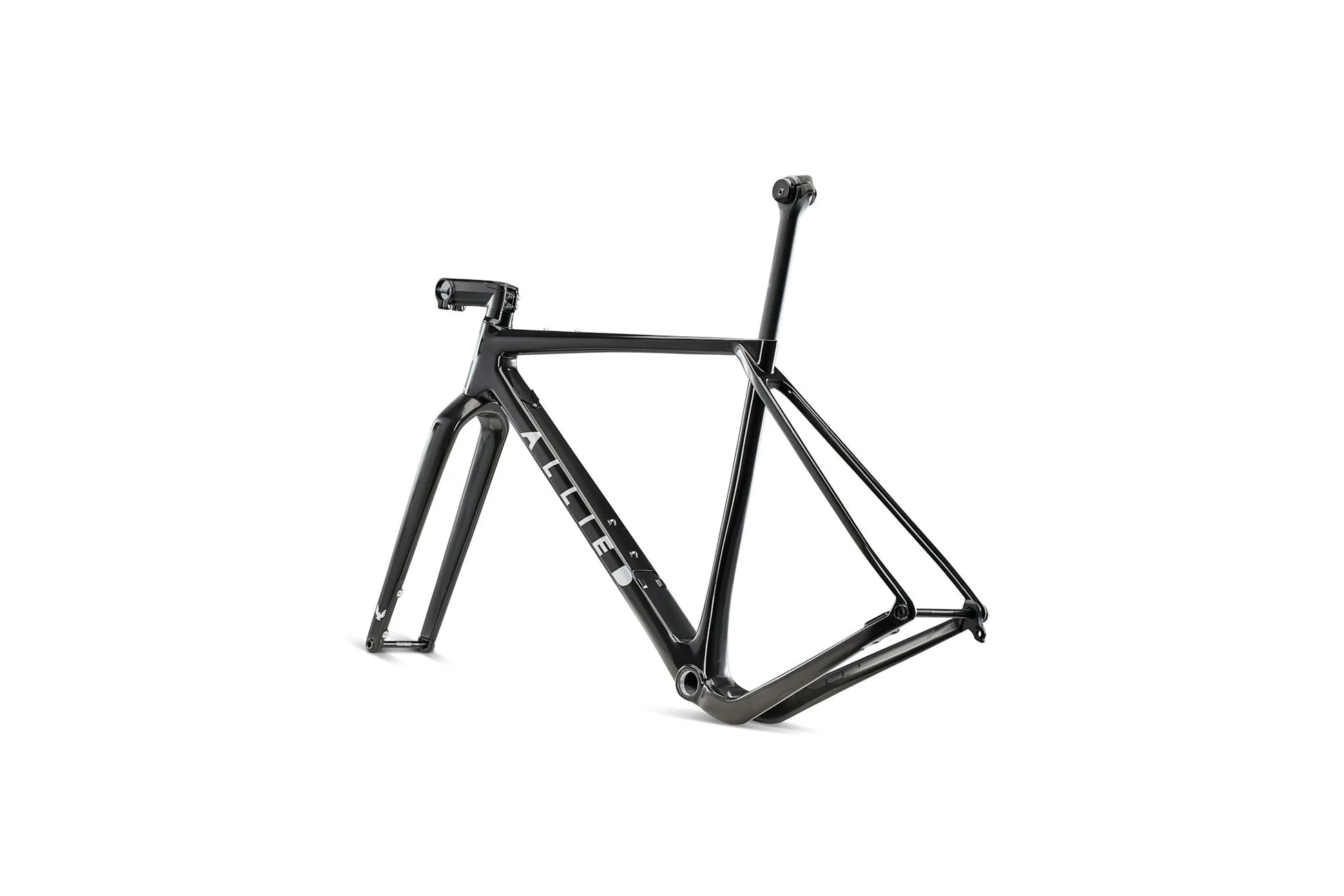

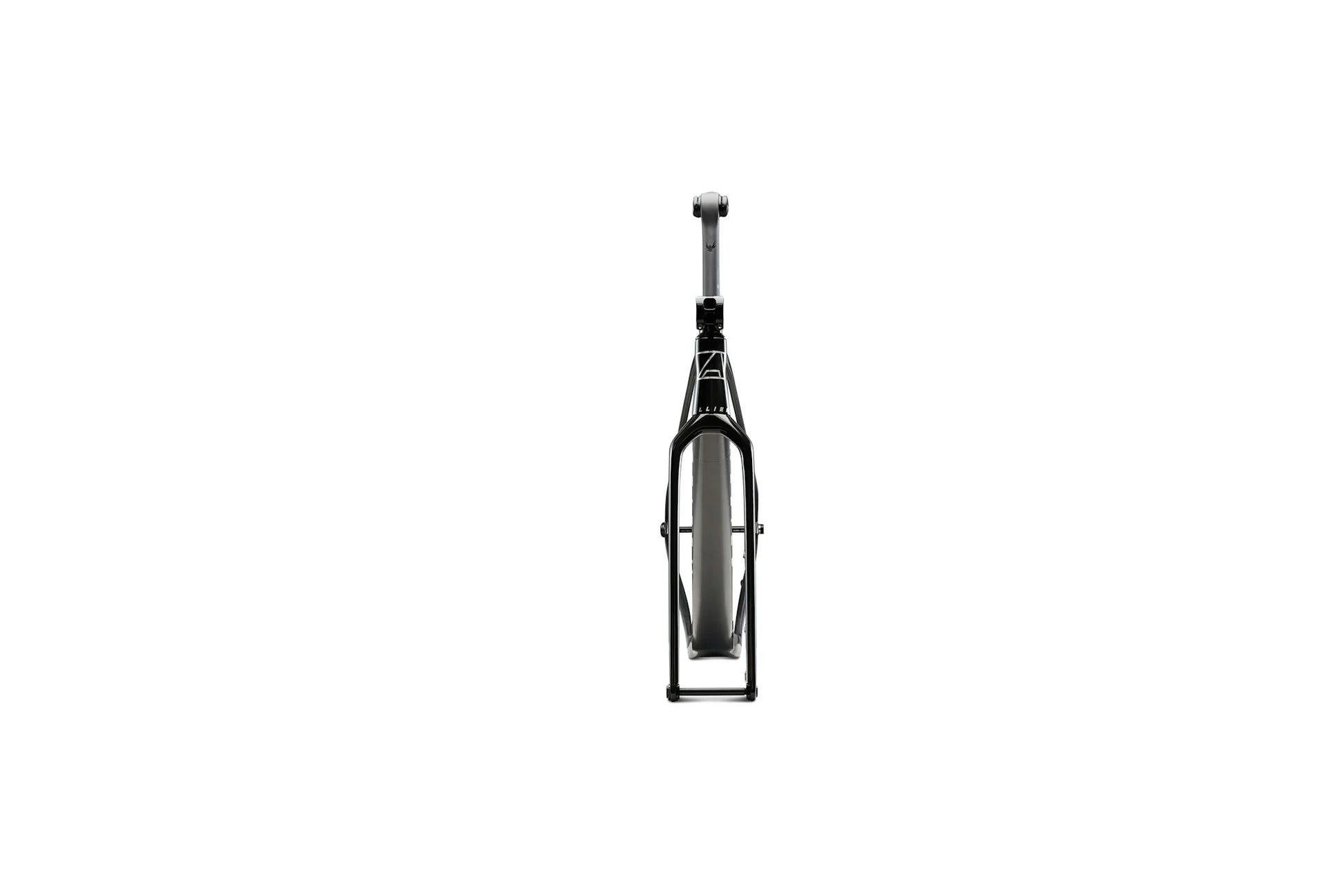

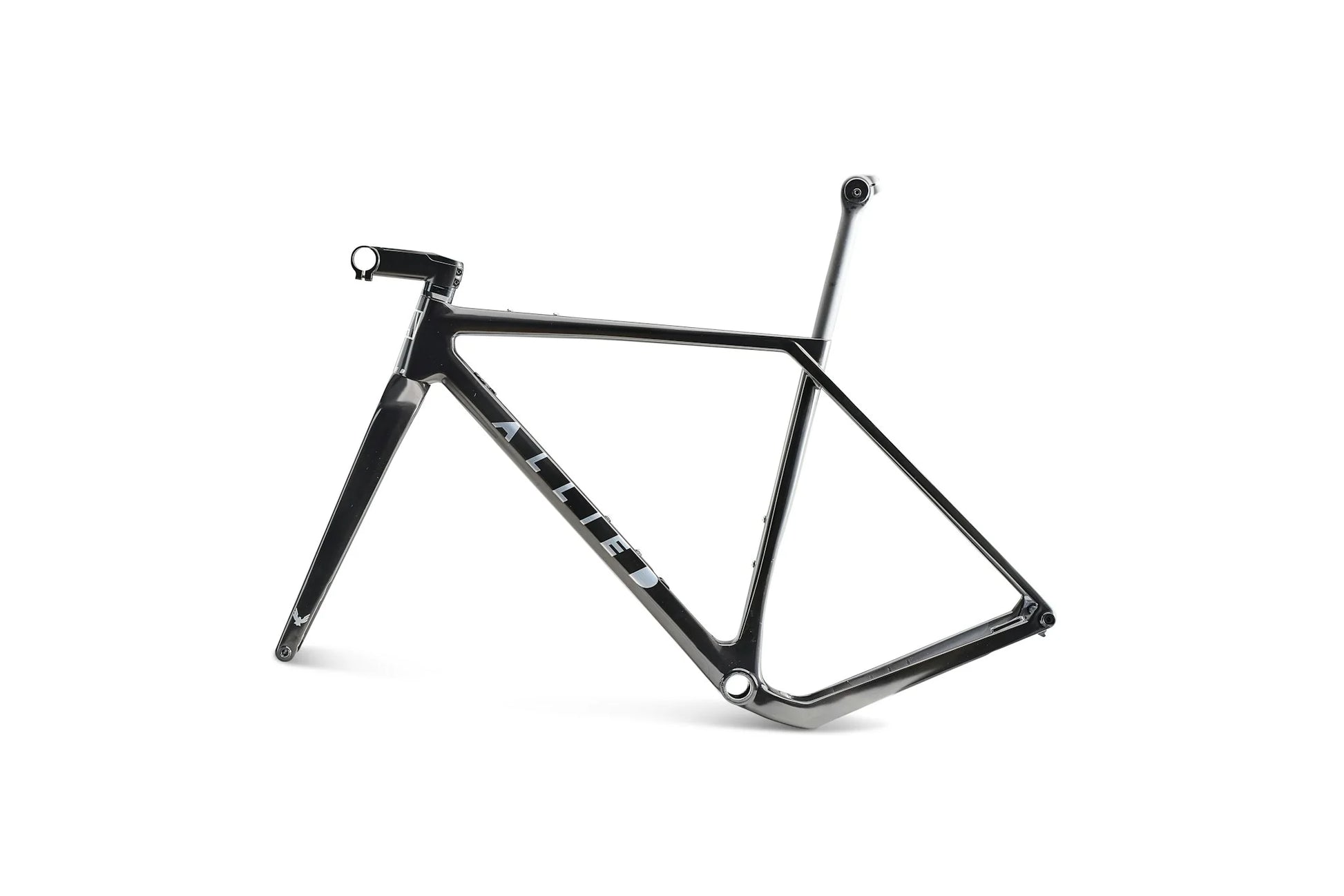

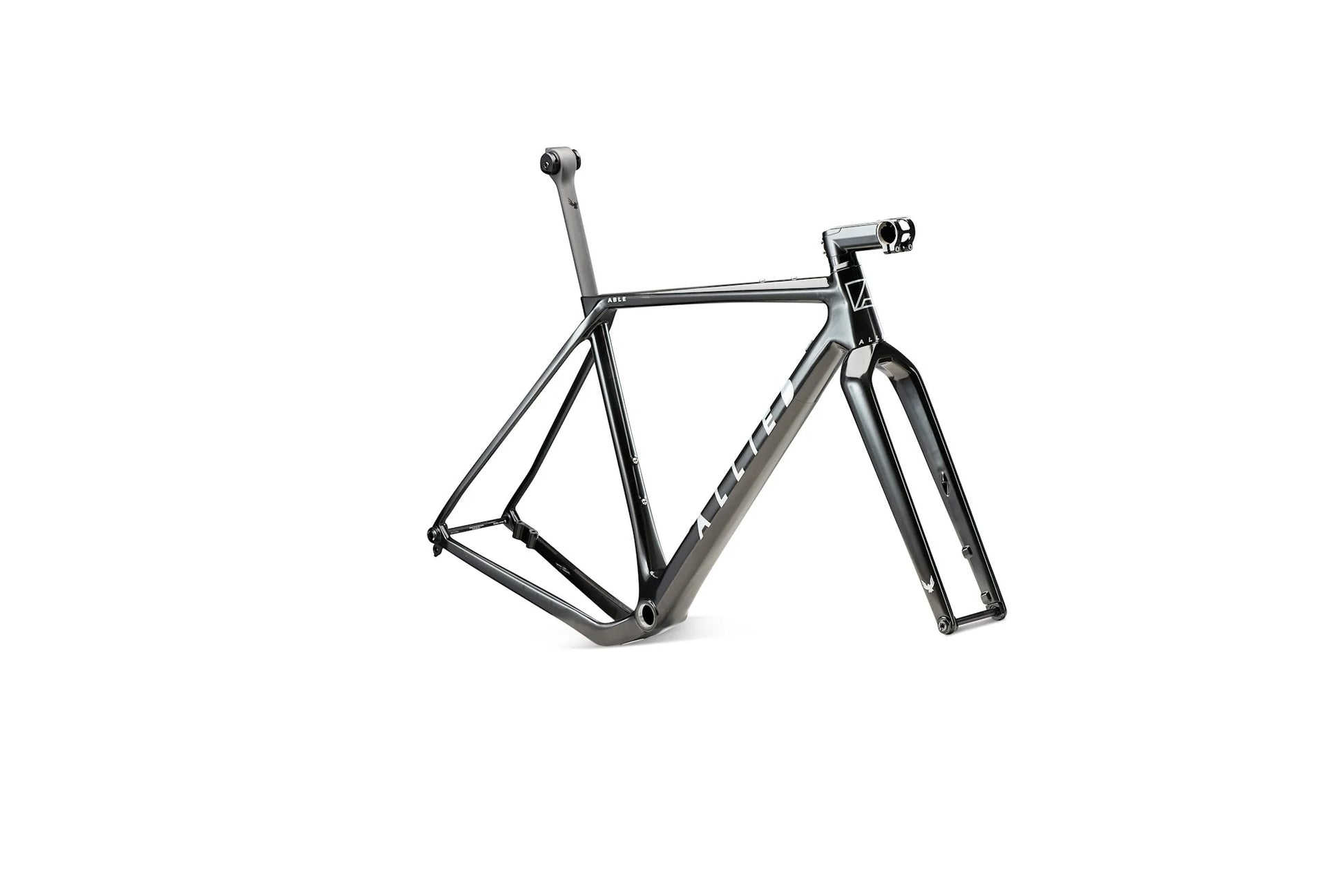

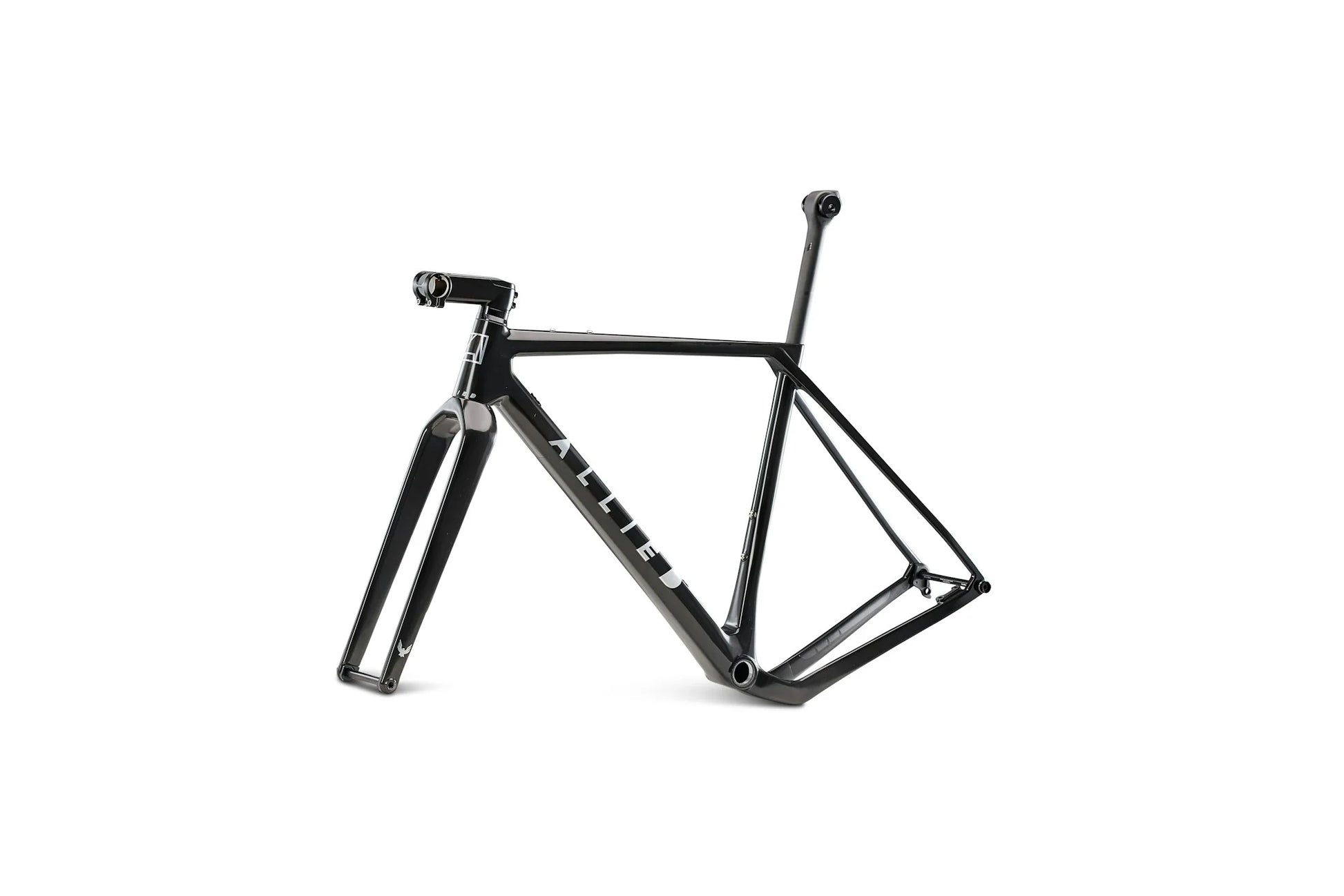

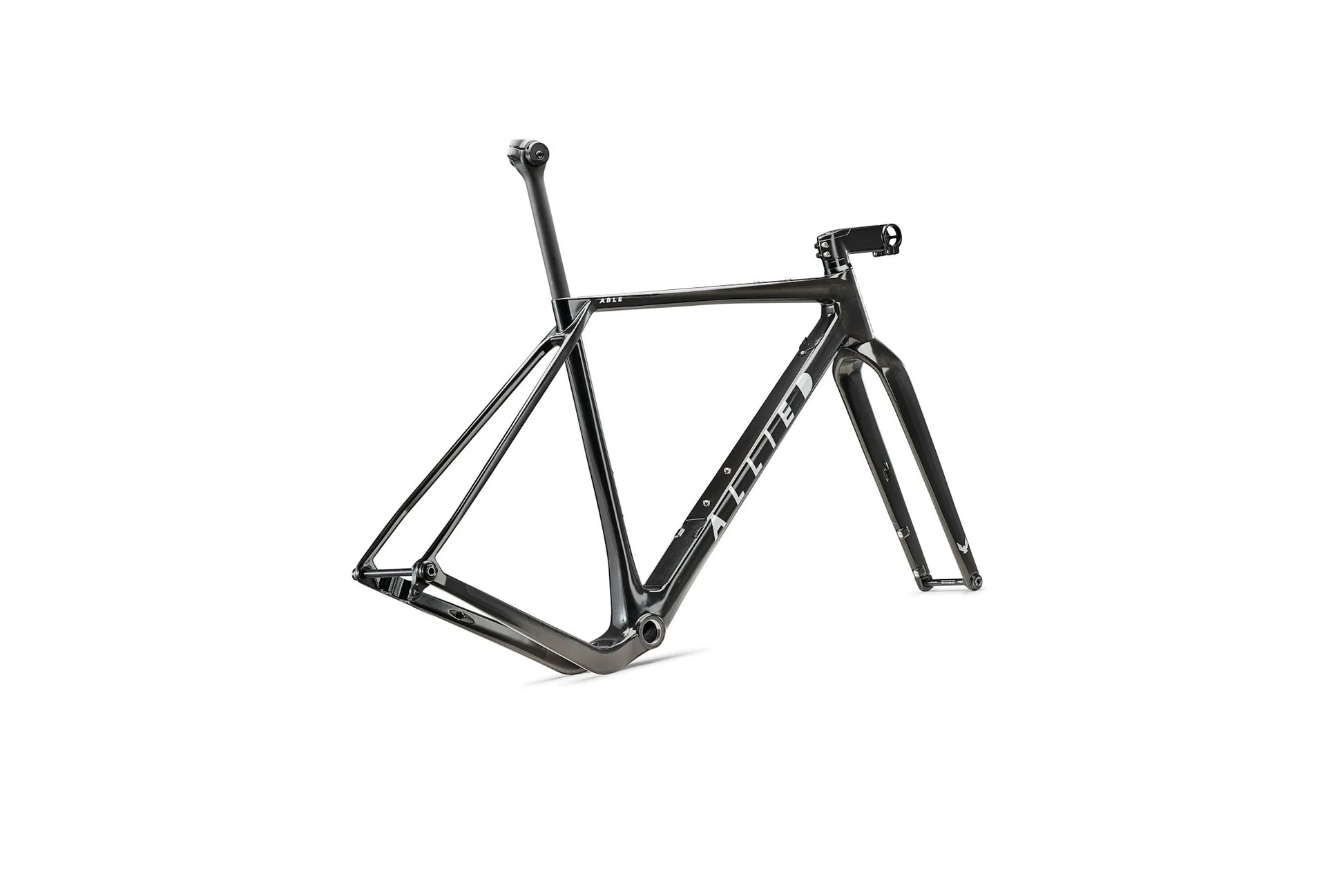

- Frameset includes fork, stem, seatpost, and headset.
- Externally routed option available upon request.
